Band Saw Description

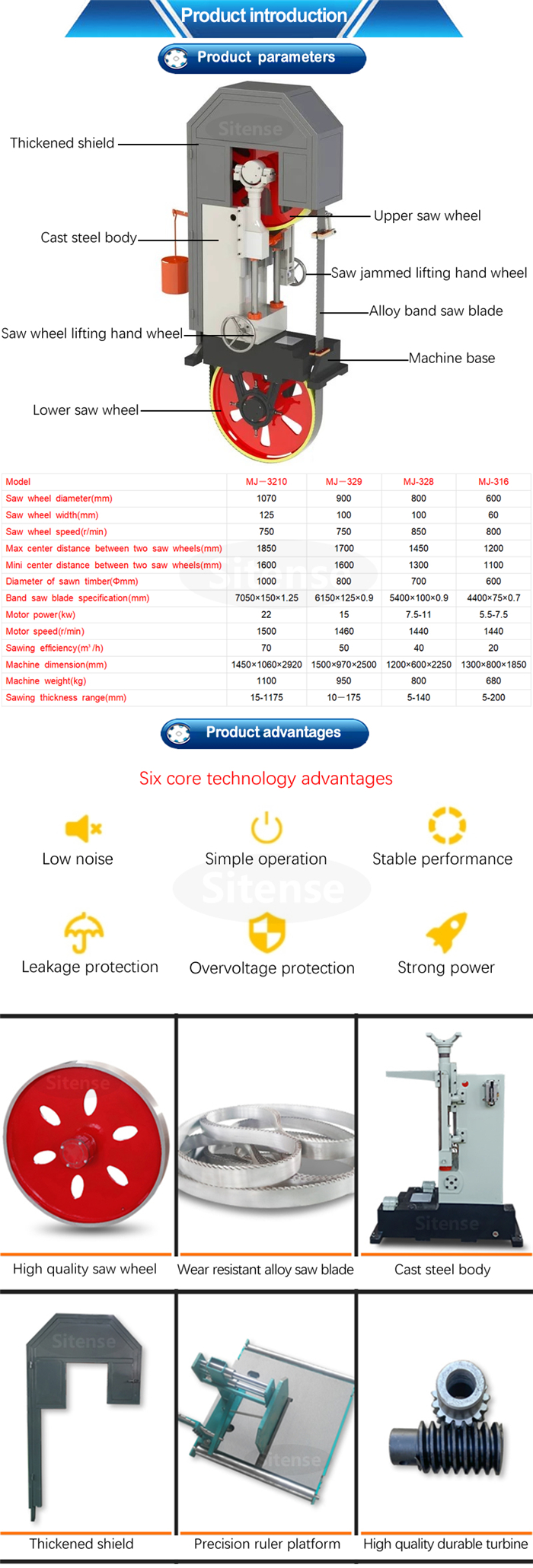

Woodworking band saw is a sawing machine that uses a ring-shaped endless band saw blade as a sawing tool and makes unidirectional continuous linear movement around two sawing wheels to cut wood. It is mainly composed of bed, saw wheel, upper saw wheel lifting and pitching device, band saw blade tensioning device, saw blade guide device, worktable, guide plate, etc. The bed is made of cast iron or steel plate welded. The saw wheel of the band saw machine is divided into a strip type upper saw wheel and a plate type lower saw wheel; The lower saw wheel is the driving wheel and the upper saw wheel is the driven wheel. The weight of the upper saw wheel shall be 2.5 ~ 5 times lighter than that of the lower saw. The cutting speed of band saw blade is usually 30 ~ 60m / s. The upper saw wheel lifting device is used for loading, unloading and adjusting the tightness of the band saw blade; The upper saw wheel pitching device is used to prevent the band saw blade from falling off the saw wheel during sawing. The band saw blade tensioning device of the band saw machine can endow the upper saw wheel with elasticity to ensure the stability of the tension of the band saw blade during operation; The old band saw adopts spring or lever weight mechanism, while the new band saw adopts pneumatic and hydraulic tensioning devices.

Safe operation instructions for woodworking band saw:

1. The thickness of band saw blade shall adapt to the matching band saw wheel. Avoid the use of large thickness saw blade for small wheel, resulting in fracture and personal injury.

2. The sawtooth shall be sharp, and the tooth depth shall not exceed 1 / 4 of the width of the saw blade.

3. The band saw blade shall be welded firmly and smoothly, with more than 3 joints. The length between the two joints shall be more than 1 / 5 of the total length, and the joint thickness shall be basically the same as that of the saw blade.

4. The transverse crack of the band saw blade shall be strictly controlled. If the crack is too long, it shall be cut off and re welded (see Table 1).

5. The sports car track of large band saw shall be straight, with travel switches at both ends, and warning bars shall be set on both sides of the sports car.

Model	MJ－3210	MJ－329	MJ-328	MJ-316
Saw wheel diameter(mm)	1070	900	800	600
Saw wheel width(mm)	125	100	100	60
Saw wheel speed(r/min)	750	750	850	800
Max center distance between two saw wheels(mm)	1850	1700	1450	1200
Mini center distance between two saw wheels(mm)	1600	1600	1300	1100
Diameter of sawn timber(Φmm)	1000	800	700	600
Band saw blade specification(mm)	7050×150×1.25	6150×125×0.9	5400×100×0.9	4400×75×0.7
Motor power(kw)	22	15	7.5-11	5.5-7.5
Motor speed(r/min)	1500	1460	1440	1440
Sawing efficiency(m³/h)	70	50	40	20
Machine dimension(mm)	1450×1060×2920	1500×970×2500	1200×600×2250	1300×800×1850
Machine weight(kg)	1100	950	800	680
Sawing thickness range(mm)	15-1175	10－175	5-140	5-200
