Log Multi Blade Rip Saw Description

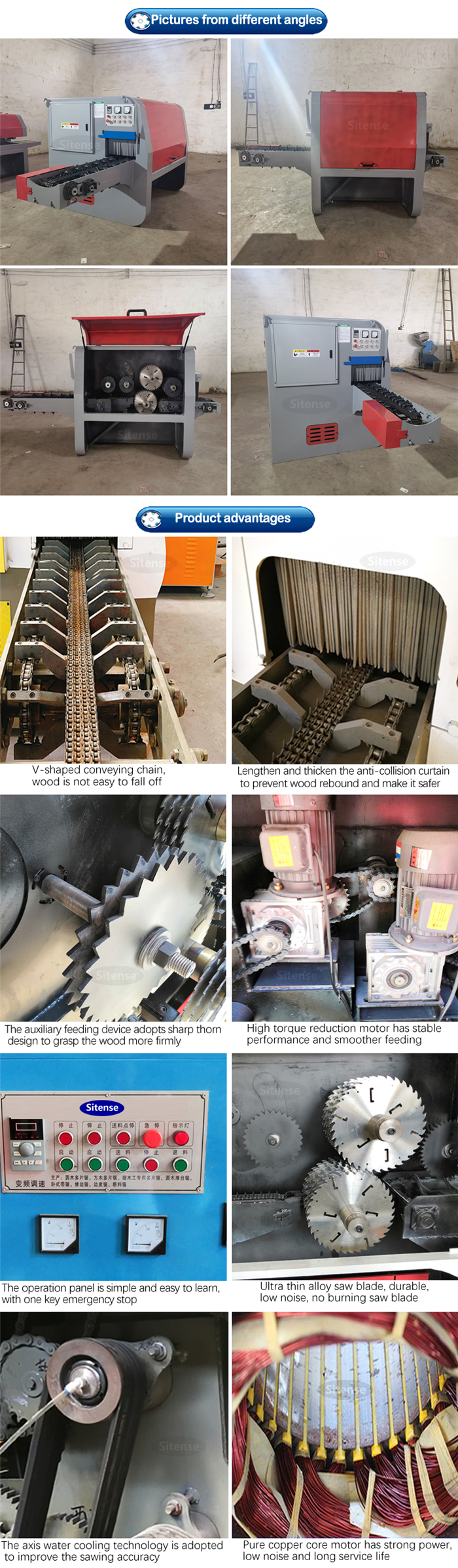

Round wood multi blade saw is a kind of equipment. It is a wood sawing technology equipment independently developed by Chinese researchers. It has the advantages of smooth feeding, fine processing, no burning of saw blades, high work efficiency, low consumables, safety and environmental protection. The round wood multi blade saw adopts a new structure and a number of new technologies. It is the first in China after scientific and technological investigation by relevant departments, and the technical content has reached the international advanced level. In view of the fact that the log diameter of Southern fast-growing forest is mostly 20cm, this equipment can sawing logs, semi logs and square logs within this diameter. It is said that it is efficient and high-precision because it can cut a log into multiple pre-set specification plates at one time, with a high degree of automation. As the thickness of the saw blade used is 1.5-1.7mm, compared with the thickness of the general saw blade of 2.5-3.0mm, the sawing path loss is 46% lower than that of other saws. On the contrary, the yield is as high as 76% to 80%, and the wood utilization rate is about 27% higher than that of other saws. Moreover, the sawing process is stable, and the equal thickness accuracy, uniform surface finish and flatness of sawed plates are high, It can also reduce one semi finishing process of wood surface.
A Chinese fir log passes through the feed port. After a while, five or six plates of different thickness are sent out from the discharge port. Round wood multi blade saw is considered to have the advantages of smooth feeding, fine processing, no burning saw blade, high work efficiency, low consumables, safety and environmental protection. This is an efficient, high-precision and resource-saving wood sawing technology research and equipment R & D project. After years of painstaking research and development by domestic technicians, it is a high-tech achievement with independent intellectual property rights. It is understood that the equipment has been put into mass production. Because the product is very close to the demand, there is a large market space at home and abroad, and it has good economic and social benefits.
Daily maintenance method of log multi blade saw:
1. Regularly adjust and check the feeding chain, feeding motor chain and navigation motor inside the log multi blade saw.
2. Regularly check whether the length and tightness of the main motor belt of the log multi blade saw are moderate, the oil cup of the box should be filled with oil regularly, and whether the oil pipe has been aligned with the port.
3. The cushion sleeve, saw blade and navigation blade in the log multi blade saw shall be cleaned regularly (3 ~ 5 days) with diesel oil and wiped with clean machine cloth. There shall be no sundries during installation. They shall be cleaned and then wiped with cloth.
4. When the spindle core changes the log multi blade saw every day, the hole shall be flushed with water, or the air gun shall be aimed at the innermost water outlet to blow out the dirt and ensure that the water outlet hole is unblocked.
5. Regularly check whether the spindle nut inside the log multi blade saw machine is loose.
|

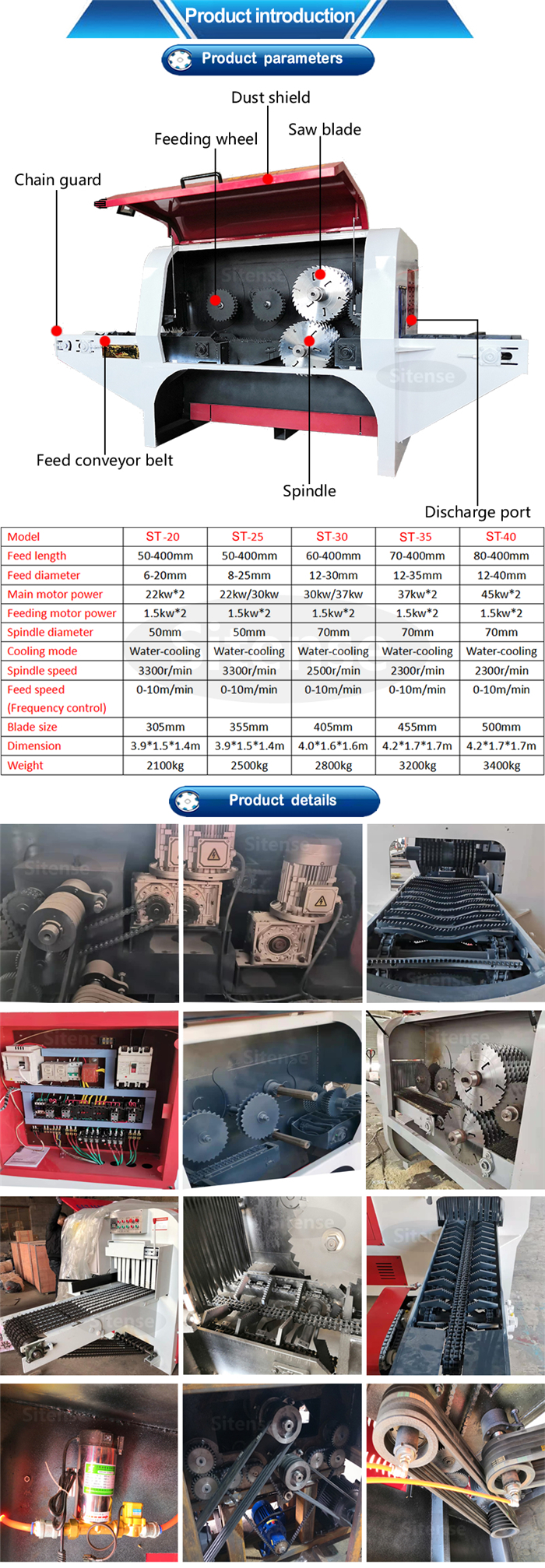

Model |
ST-20 |
ST-25 |
ST-30 |
ST-35 |
ST-40 |
|
Feed length |
50-400mm |
50-400mm |
60-400mm |
70-400mm |
80-400mm |
|
Feed diameter |
6-20mm |
8-25mm |
12-30mm |
12-35mm |
12-40mm |
|
Main motor power |
22kw*2 |
22kw/30kw |
30kw/37kw |
37kw*2 |
45kw*2 |
|
Feeding motor power |
1.5kw*2 |
1.5kw*2 |
1.5kw*2 |
1.5kw*2 |
1.5kw*2 |
|
Spindle diameter |
50mm |
50mm |
70mm |
70mm |
70mm |
|
Cooling mode |
Water-cooling |
Water-cooling |
Water-cooling |
Water-cooling |
Water-cooling |
|
Spindle speed |
3300r/min |
3300r/min |
2500r/min |
2300r/min |
2300r/min |
|
Feed speed (Frequency control) |
0-10m/min
|
0-10m/min
|
0-10m/min
|
0-10m/min
|
0-10m/min
|
|
Blade size |
305mm |
355mm |
405mm |
455mm |
500mm |
|
Dimension |
3.9*1.5*1.4m |
3.9*1.5*1.4m |
4.0*1.6*1.6m |
4.2*1.7*1.7m |
4.2*1.7*1.7m |
|
Weight |
2100kg |
2500kg |
2800kg |
3200kg |
3400kg |
