Horizontal Band Saw Description
Horizontal band saw sawmill is a tool for removing the wood skin at the bottom of log by horizontal band saw. Horizontal band saw can be specialized in the production and processing of mahogany furniture, pine, etc. when processing, it can save labor, material and environmental protection. It is the first choice for all wood processing factories and furniture factories. The horizontal woodworking band saw sawmill is composed of saw frame, parallelogram adjusting device or four screw adjusting device, grinding saw, track and lifting support. When the machine works, the wood is fixed, the track is stably fixed on the wood, the saw is installed on the track, and the thickness of the processed wood is adjusted through the parallelogram adjustment device to make the saw cut along the plane of the wood. Sawmill can not only process large and super long wood easily and labor-saving, but also ensure the quality. It is widely used for mobile processing in sawmills, shipyards and mountain wood logging yards.

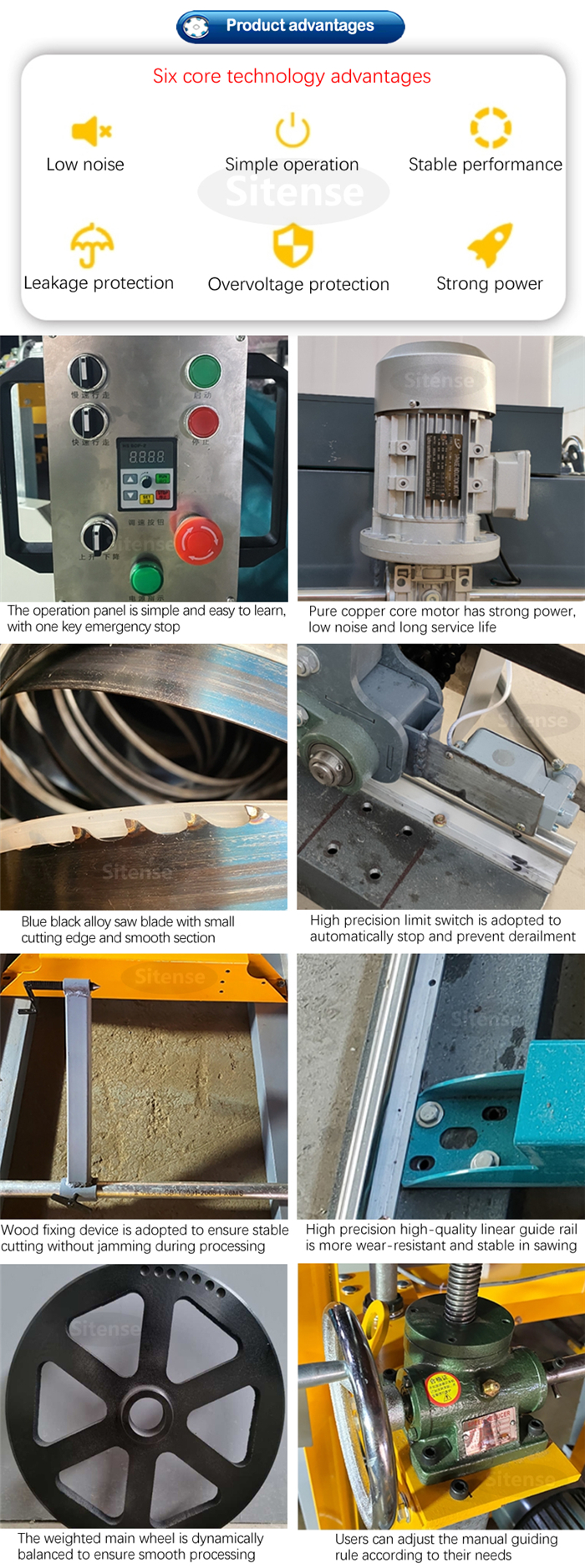

Advantages of horizontal woodworking gantry saw sawmill:
1. The main cutting motion of the saw blade is unidirectional and continuous, so it is easier to improve the cutting speed.
2. Band sawing machine can adopt single sawing to realize reasonable viewing and sawing, which is conducive to improving talent yield and finished product quality.
3. A thin saw blade can be used on the band saw, and the saw path is narrow, which can relatively reduce the loss of sawdust.

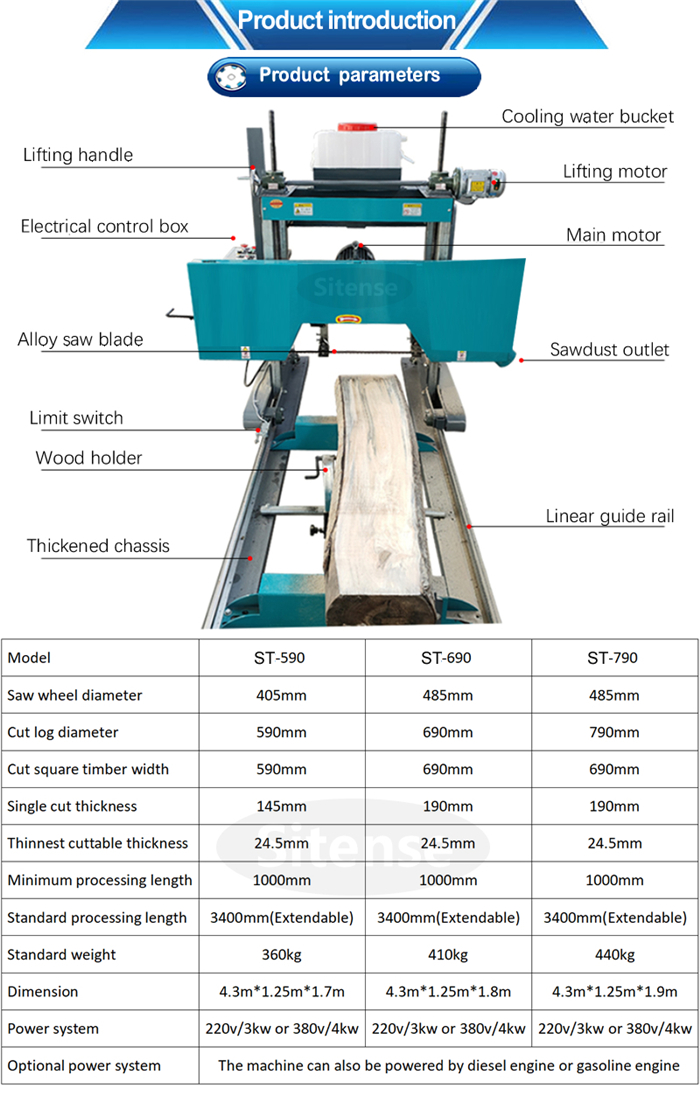

Model ST-590 ST-690 ST-790 Saw wheel diameter 405mm 485mm 485mm Cut log diameter 590mm 690mm 790mm Cut square timber width 590mm 690mm 690mm Single cut thickness 145mm 190mm 190mm Thinnest cuttable thickness 24.5mm 24.5mm 24.5mm Minimum processing length 1000mm 1000mm 1000mm Standard processing length 3400mm(Extendable) 3400mm(Extendable) 3400mm(Extendable) Standard weight 360kg 410kg 440kg Dimension 4.3m*1.25m*1.7m 4.3m*1.25m*1.8m 4.3m*1.25m*1.9m Power system 220v/3kw or 380v/4kw 220v/3kw or 380v/4kw 220v/3kw or 380v/4kw Optional power system The machine can also be powered by diesel engine or gasoline engine
